G652D AT PE Sheath 150m 200m Span Fiber Optic Cable ADSS-24

  • 1
  • 2

Brand Name : JQ/OEM

Model Number : ADSS

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou

MOQ : 1km

Payment Terms : L/C, T/T, Western Union

Supply Ability : 4500KM Per Month

Delivery Time : 5-8 work days

Packaging Details : wooden drum

Fiber type : single mode or multi mode

Fiber count : 4-144 core

Color : Black

Length : 2km or customized length

Jacket material : PE/AT

Name : ADSS Optical Fiber Cable

Strength member : FRP

Application : Aerial

Operating temperature : -40 ~ +60 C

Type : ADSS,S-Z stranded type

Contact Now

ADSS-24 G652D AT/PE Sheath 150m or 200m Span Fiber Optic Cable

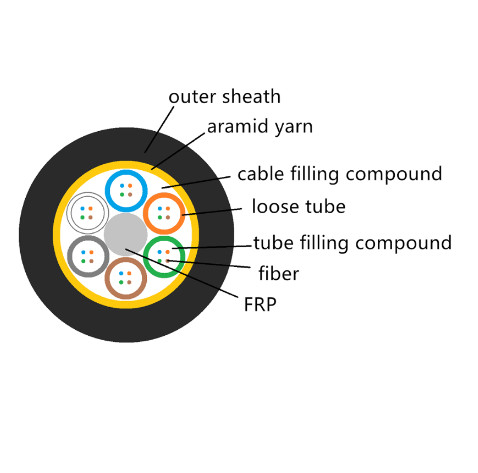

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

G652D AT PE Sheath 150m 200m Span Fiber Optic Cable ADSS-24

G652D AT PE Sheath 150m 200m Span Fiber Optic Cable ADSS-24

G652D AT PE Sheath 150m 200m Span Fiber Optic Cable ADSS-24

Features

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

G652D AT PE Sheath 150m 200m Span Fiber Optic Cable ADSS-24

Technical Data

Structure and Technical Specifications ADSS-SJ(50-500m Span)

Ref.Outer

Diameter

(mm)

Ref.Weight

kg/km)

Rec.DailyMax.

Working

Tension(kN)

Max

Allowable

Working

Tension

[kN)

Break

Strength

(kN)

Strength

Member

CSA.

(kN/mm2)

Modulusof

Elasticity

CSA

kNmm2)[

Heat

Expansion

Coefficient

(X10-6/K)

SuitableSpan

Meter

ABICP

PE

AT

12.5

125

136

1.5

4

10

4.6

7.6

1.8

160

100

140

100

13.0

132

142

2.25

6

15

7.6

8.3

1.5

230

150

200

150

13.3

137

148

3.0

8

20

10.35

9.45

1.3

300

200

290

200

13.6

145

156

3.6

10

24

13.8

10.8

1.2

370

250

350

250

13.8

147

159

4.5

12

30

14.3

11.8

1.0

420

280

400

280

14.5

164

177

5.4

15

36

18.4

13.6

0.9

480

320

460

320

14.9

171

185

6.75

18

45

22.0

16.4

0.6

570

380

550

380

15.1

179

193

7.95

22

53

26.4

18.0

0.3

670

460

650

460

15.5

190

204

9.0

26

|60

32.2

19.1

0.1

750

530

750

510

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
